Kent Armstrong Mini Humbucker - Chrome

Additional Information

Product Code: KA-MFBV1-CR
Brand: Kent Armstrong

Availability: Out of stock

NZ$93.00

Quick Overview

Kent Armstrong Pickups

KA-MFBV1-CR

Click on above image to view full picture

More Views

  • KA-MFBV1-CR

Details

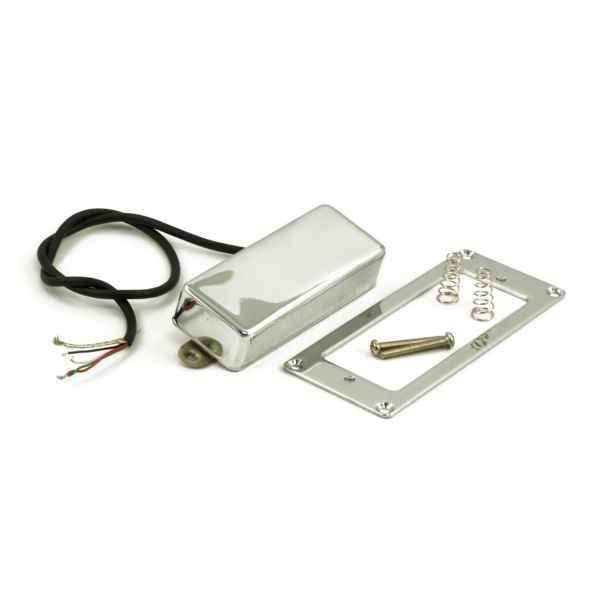

A reproduction of the classic Firebird® Mini Humbucker. Similar in tone to the Vintage PAF with a slight increase in high end. An excellent blend of rich, vintage Humbucker tones with a small dab of single coil bite.
Amazing neck pickup in any vintage style guitar application. Replacement for Firebird®,, Les Paul®, Deluxe, etc.
Metal mounting ring and wiring instructions included.

Specs and Dimensions:

- Magnet type : Alnico 5
- Resistance : 6.0K bridge
- Length : 67mm
- Width : 27mm
- Height : 17mm
- 75mm centre to centre of mounting screw spacing.
- Includes 4 conductor wiring
- Vintage Chrome Cover

Mounting ring measurements:

- Outer measurements - 91mm x 40.5mm. 2mm thick.
- Internal measurements - 68mm x 28mm.
- Centre to centre of two pickup mounting holes - 75mm.
