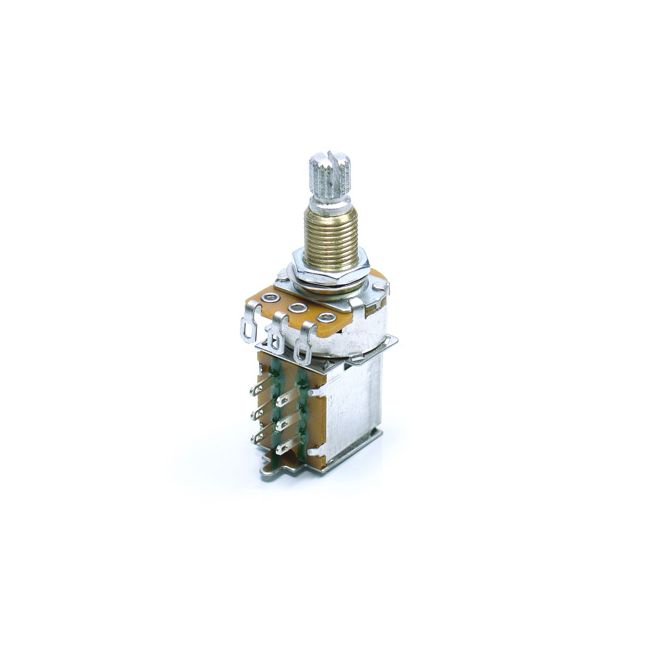

Alpha 250k Audio Taper Pot Push Pull Pot - Metric Thread and 18 Spline. Brass Shaft. Used to control pickup phasing series/parallel switching coil-taps and more. Includes nut and washer.
Dimensions:
- 46mm overall length
- 23mm wide
- Threaded portion on the shaft is 9.5mm long
- Total length of the shaft to the top of the spline is 18mm
- Threaded Brass Shaft diameter is 8mm
- Split Shaft Diameter : 6mm
- 18 spline (coarse)
| Brand | Realtone |
|---|
