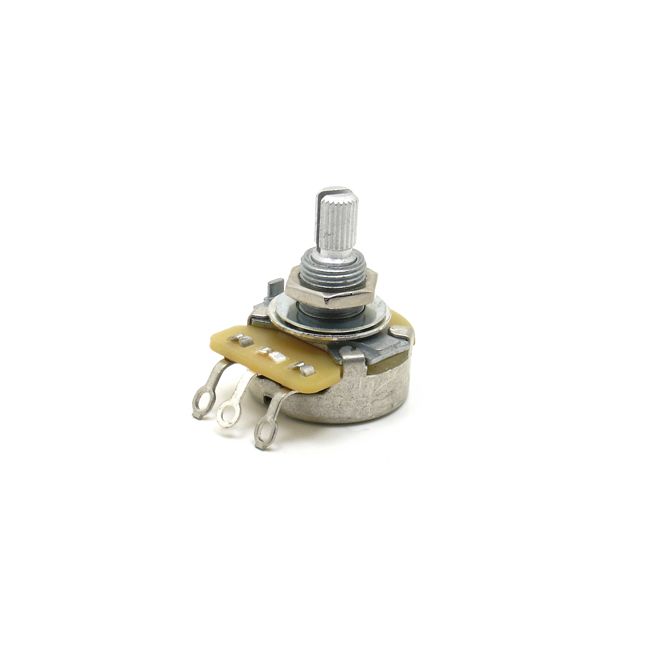

CTS 'No Load' 250K Pot. Split Shaft With Nut, Lock & Dress Washer. US thread and 24 spline.
Can be used in place of any tone pot on guitar or bass. When turned between 1-9, the No-Load pot works like a standard tone control, then acts as a true bypass when rotated between 9 and 10, removing the tone pot and capacitor from the circuit.
Dimensions - 6mm diameter shaft. The threaded portion on the shaft is 9.5mm long. Total length of the shaft to the top of the spline is 18mm.
See below for matching 250k Audio Taper pot.
| Brand | CTS Pots |
|---|
